Our true passion for the outdoors, a commitment to quality and absolute attention to detail show through in the finished product.

Our unique products and stunning bespoke project-builds are fast becoming off-road benchmark products.

How do we achieve this?

Firstly, we do things a little differently: our designs are 3D modelled, engineer certified where required and built on a custom jig – just for your project – meaning you get the quality you deserve. Secondly, we are a team of passionate individuals with just the right balance between youthful energy and industry experience. And finally, we are a team with one overarching end goal in mind: to make each and every client feel like a VIP. So whether it’s the next addition to your work truck or your ultimate dream build, let us handle your next off-road project.

We are OzTrack Custom. Why settle for standard?

We only work with the best

Projects

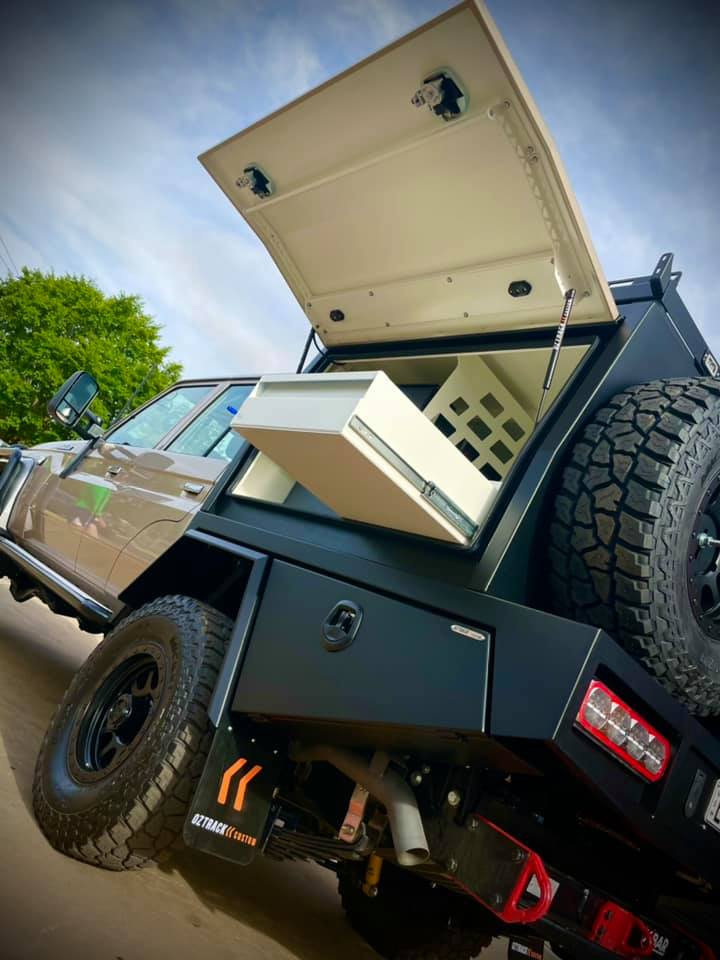

"79-GOLD"

Build Specs:

100% Aluminium Construction
CAD Drawn CNC folded 3/4 Length Compact canopy
Tapered under tray toolboxes
1500mm Trundle draw running on heavy duty draw slides
One piece Flared mudguards
Folding rear access ladder
Roof rack with side awning mounts
Twin spare wheel holders
Fridge partition

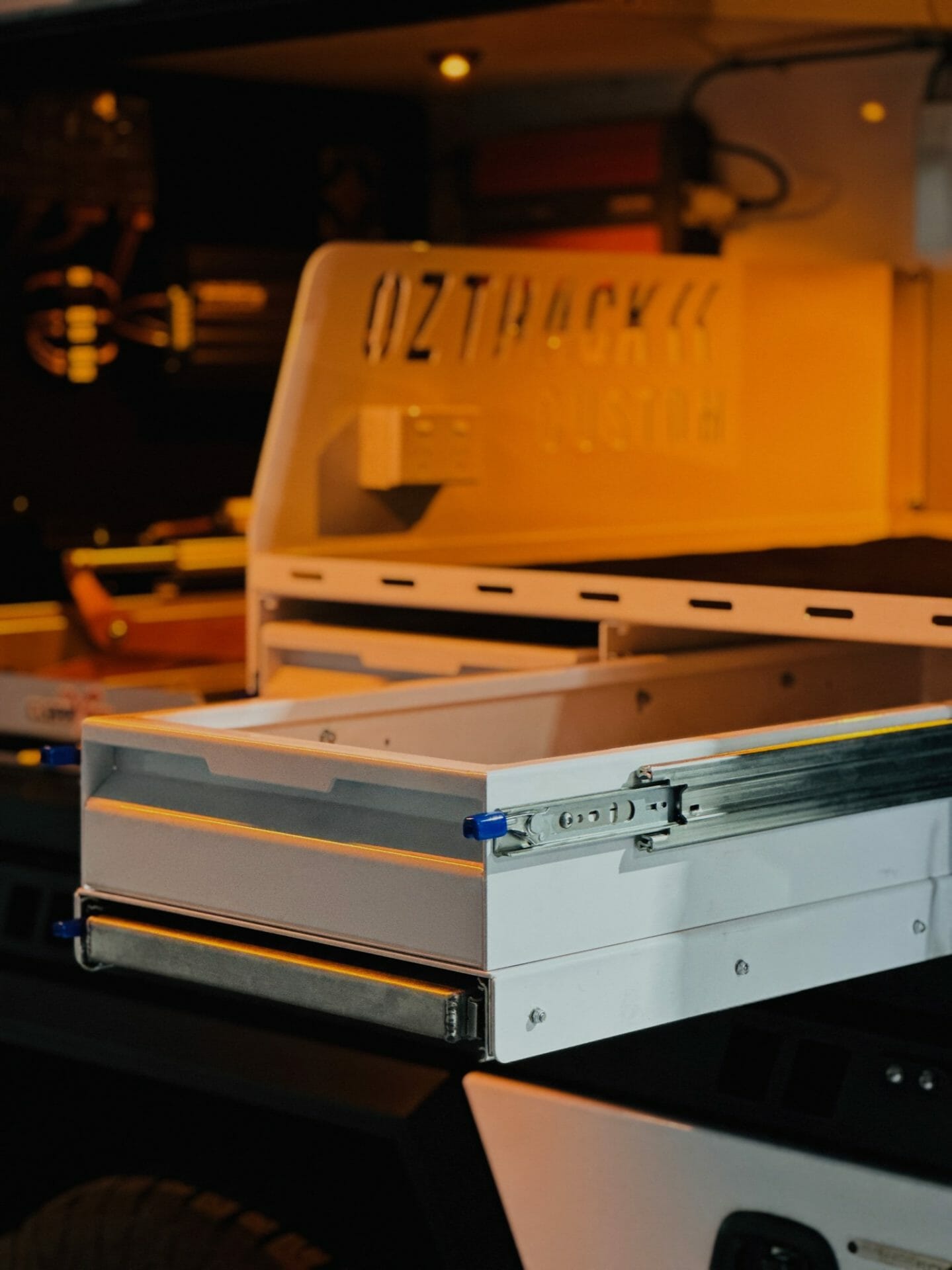

Twin drawer unit running on heavy duty draw slides
Large single draw unit running on heavy duty draw slides
BushMan 85l upright fridge
Built in controls panel Mounted to front wall
Coated in 'Textura Black' powdercoat
Colour coded doors
RedArc Solar in-put and charging (BCDC Smart charger)
160w RedArc solar panels (roof mounted)
100AH deep cycle battery
8x Switch control panel
Internal STEDI lighting package
External STEDI lighting package
Twin USB outlets
Anderson plug
Fridge partition
CIG socket outlet

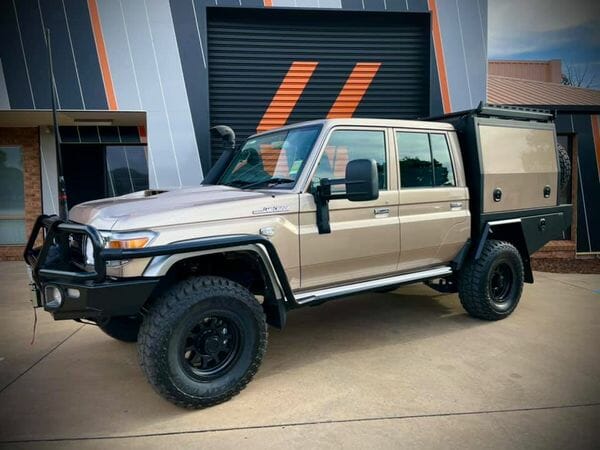

Gold Toyota Landcruiser Chassis Mount Canopy

79 Merlo Toyota Landcruiser Wedgetail roof top

79 Merlo Toyota Landcruiser OzTrack custom chassis mount canopy

79 Merlo Toyota Landcruiser Oztrack Custom Canopy

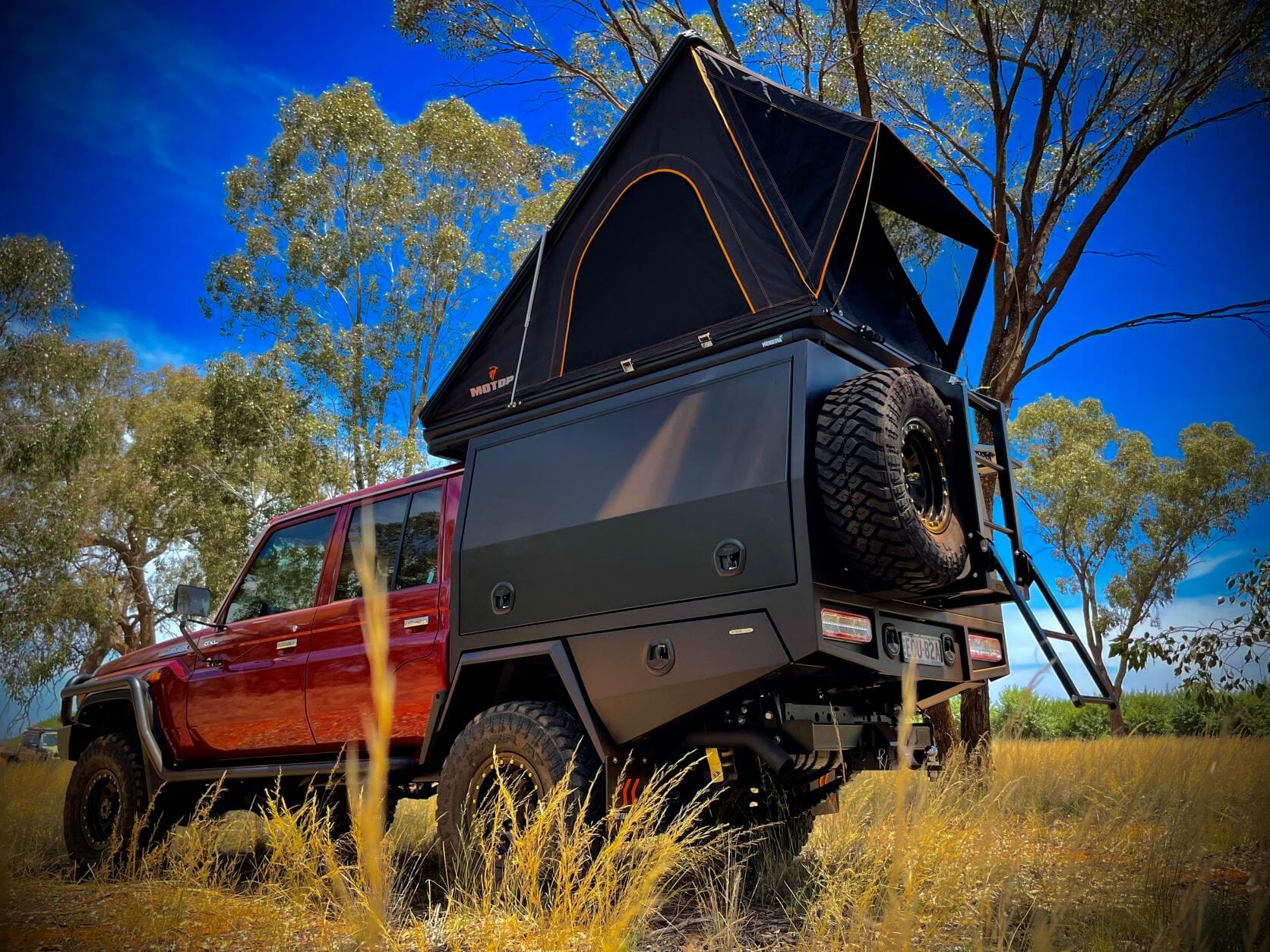

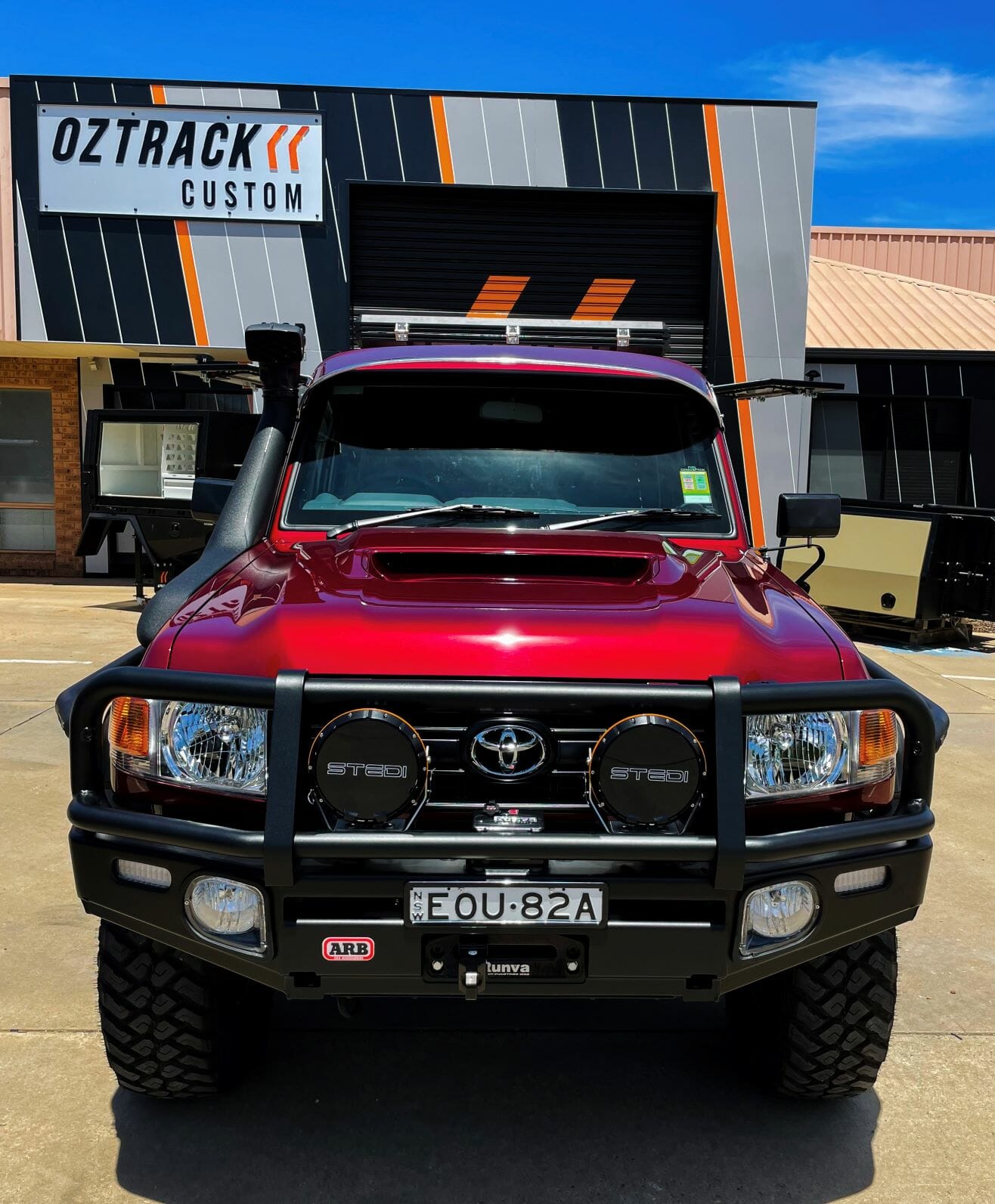

"MERLOT 79"

Build Specs:

OzTrack Custom chassis mount canopy - Aluminium
Customer spec internal fit out
STEDI lighting package
Central locking to all doors included under tray toolboxes
Clearview dropdown fridge slide

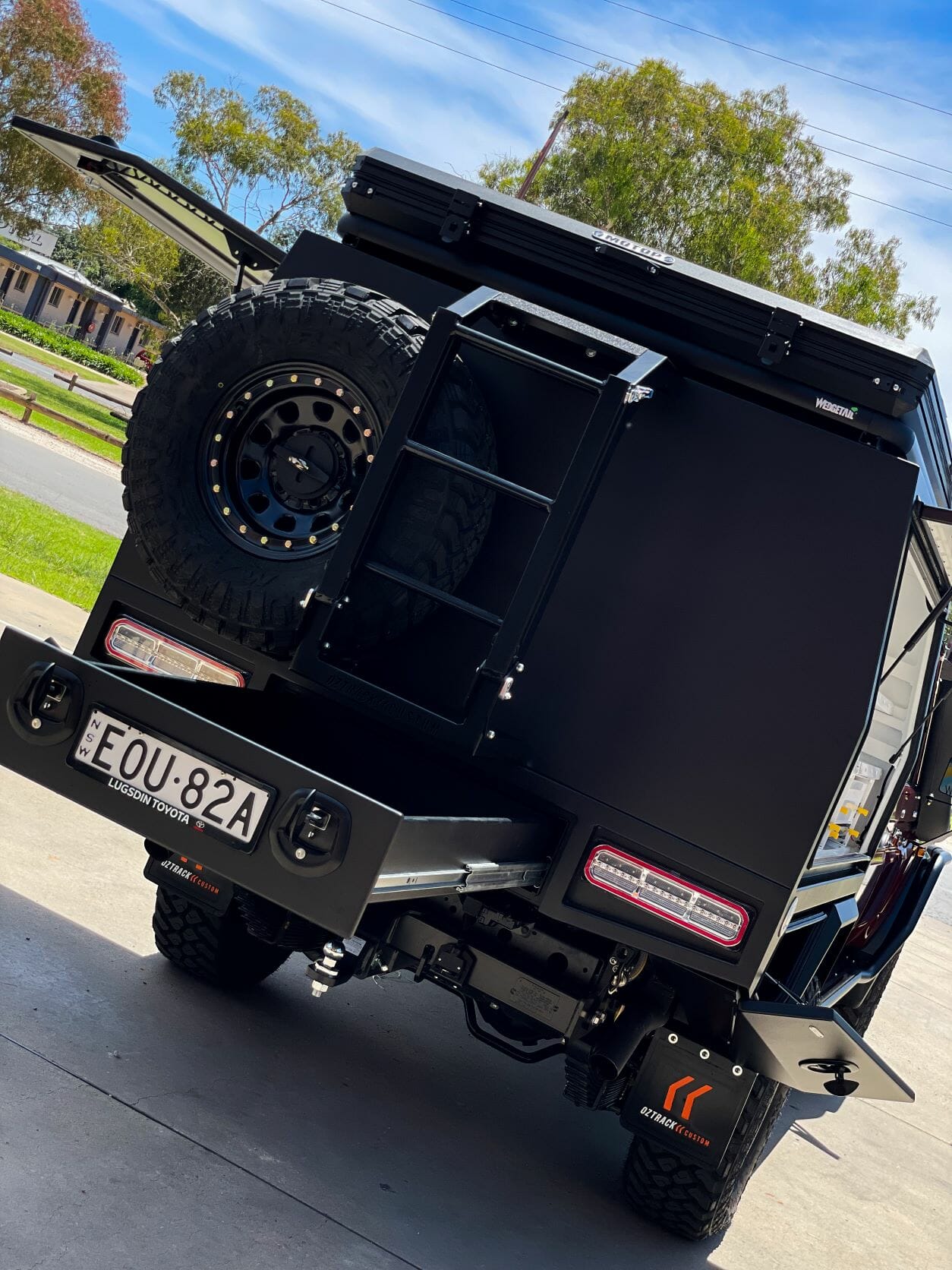

Dual stage Rear ladder
Rear spare wheel mount

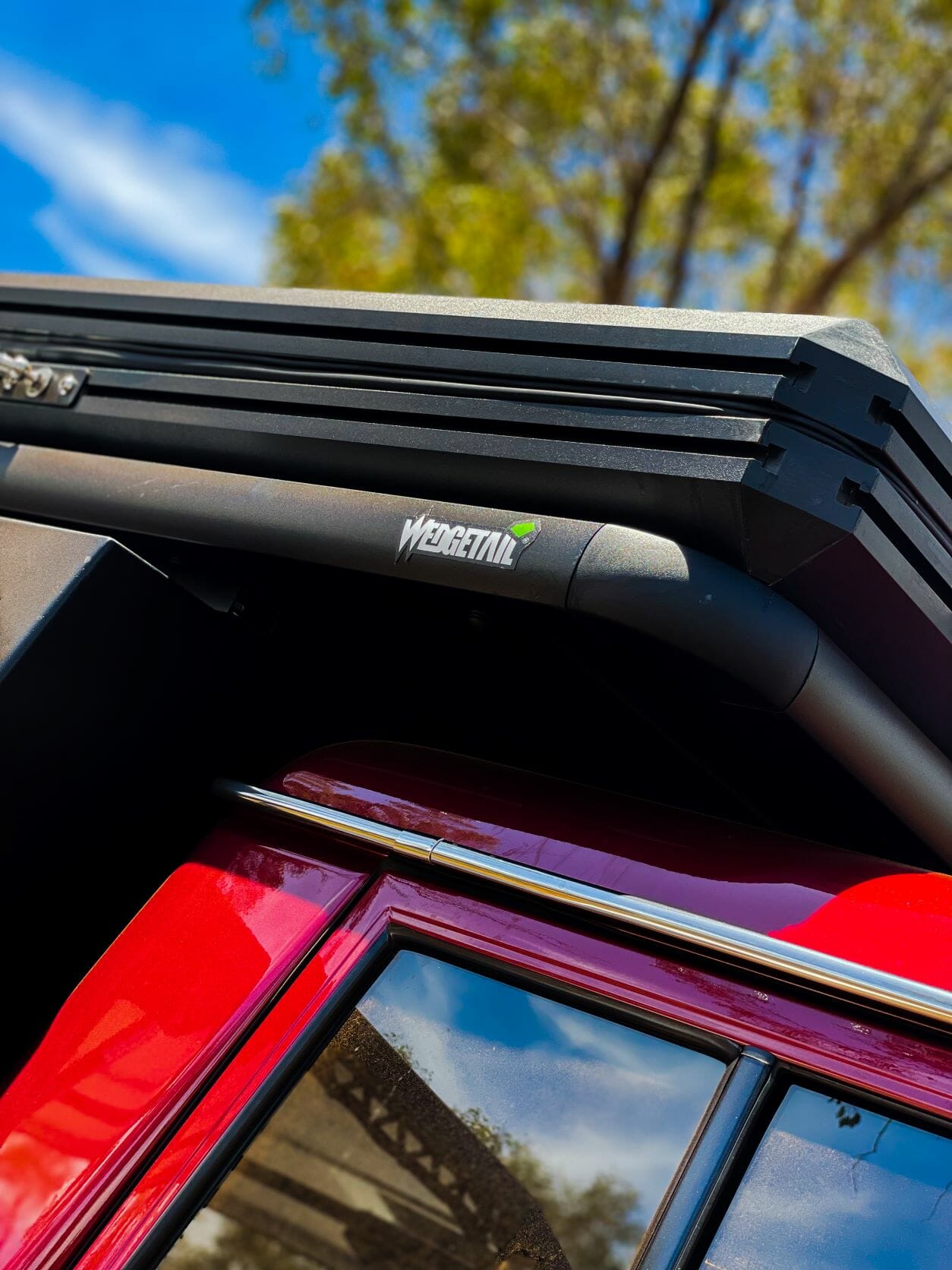

Wedge tail roof rack
V4 Motop roof top tent
Stainless steel water tank plumbed to rear tap
Powder coated canopy base with 2pac Satin Black doors
GVM Upgrade - Old Man Emu with BP-51S
ARB Bullbar & Side-rails/ steps
Runva Winch
Safari Armax Snorkel
STEDI driving lights
REDARC Dual battery system
Reverse camera wired into factory head unit
Rim & Tyre package
Window tint

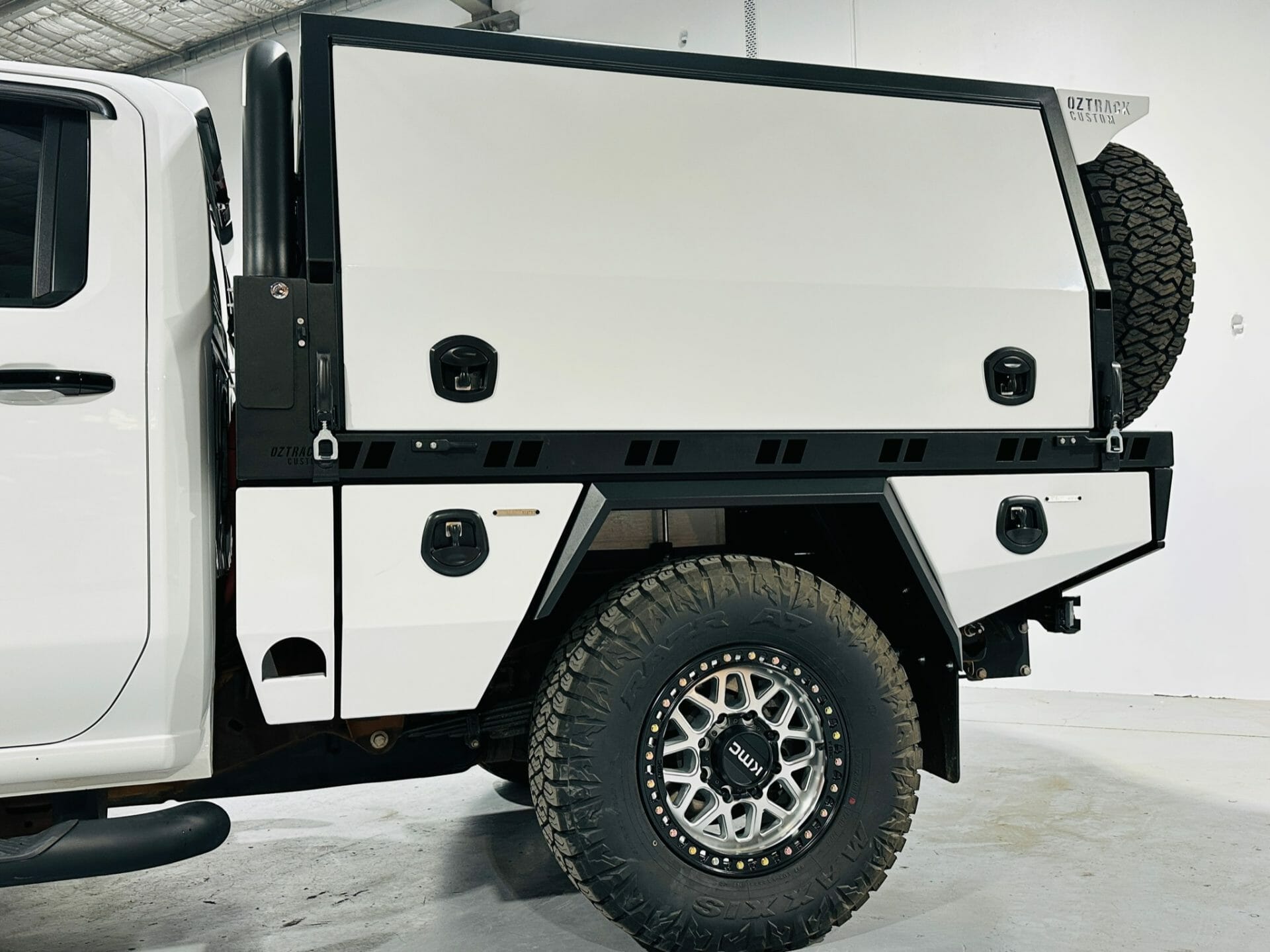

"TERRY'S TOURER"

Oztrack FCC/ X-MS CUSTOM :

Tray Specs & Inclusions

Fully welded, CNC pressed, Mild Steel “Base Structure” with 6mm Mild Steel mounts
Laser cut design integrated into side rail profile creating tie off points
2mm mild steel one piece tapered and Flared adjustable guards
Aluminium accessories fitted to reduce weight:

All external welds are sanded flush to give a seamless finish
CNC folded head-bow, welded to a CNC folded sheet metal landing with bolt on cover plate
Headboard design includes provisions/support for mounting of - spare tyres, work lights, power outlets & solar input
Removable 5mm aluminium floor plate, secured using countersunk stainless Allan key screws
6x flush mount load rated tie down points fitted to floor sheet
Reuse of genuine fuel filler and locking cap re routed
Aluminium CNC pressed in-fill panels forward of mudguards
Maxilamp 385 series, LED combination tail lights
Recessed LED number plate light
Relocation of rear parking sensors
Relocation of rear camera
Relocation of rear radar sensors
All tray components are 100% powdered primed & powder coated to give complete coverage and protection

XMS-175 Series Canopy:

SPEC G175 (3/4 Canopy)

Flush floor to door opening design for easy fitment of internal draws, benches, slides etc
Integrated Cable Routing throughout canopy protecting cable runs from damage (cable runs within fridge compartment are protected via wall partition)

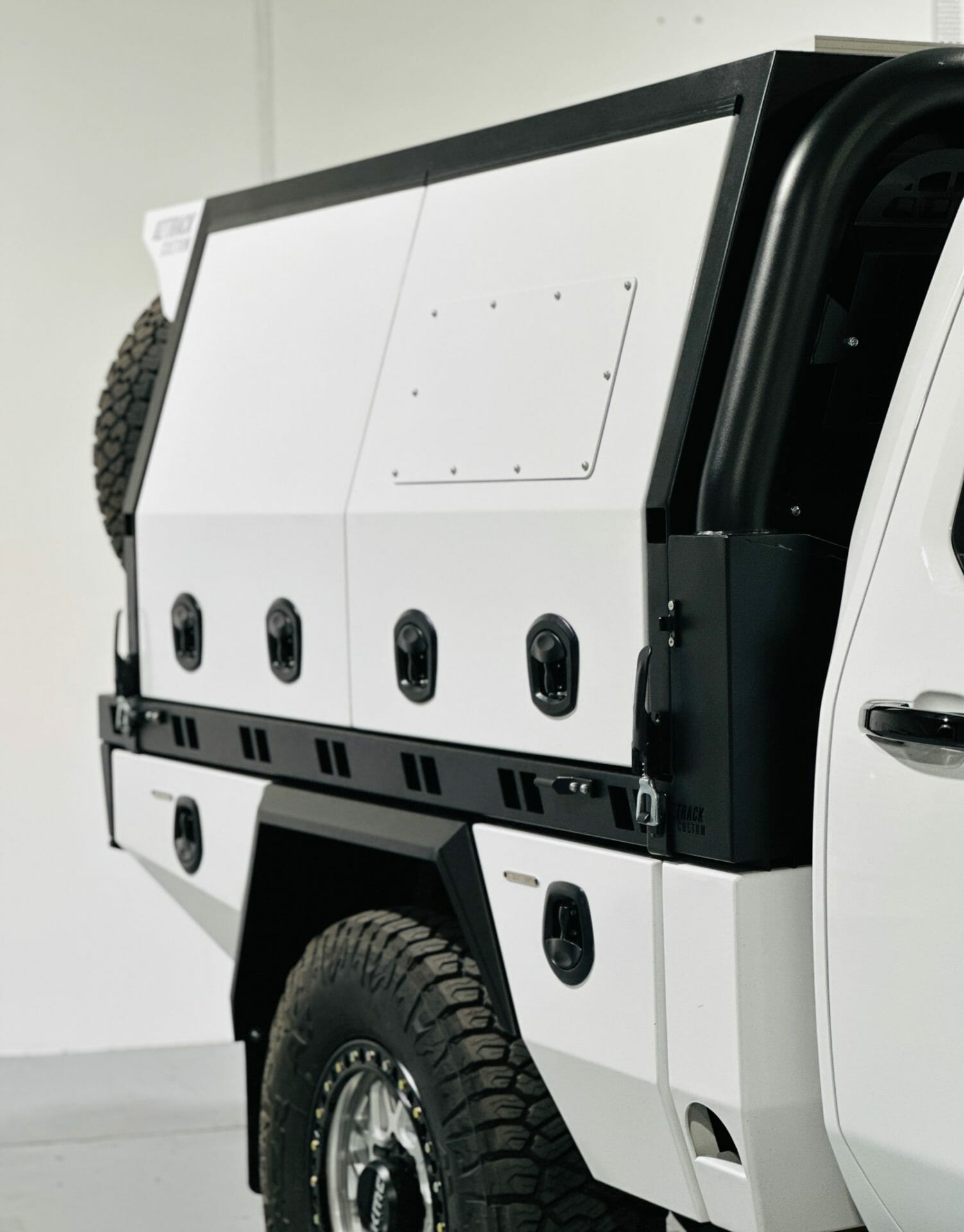

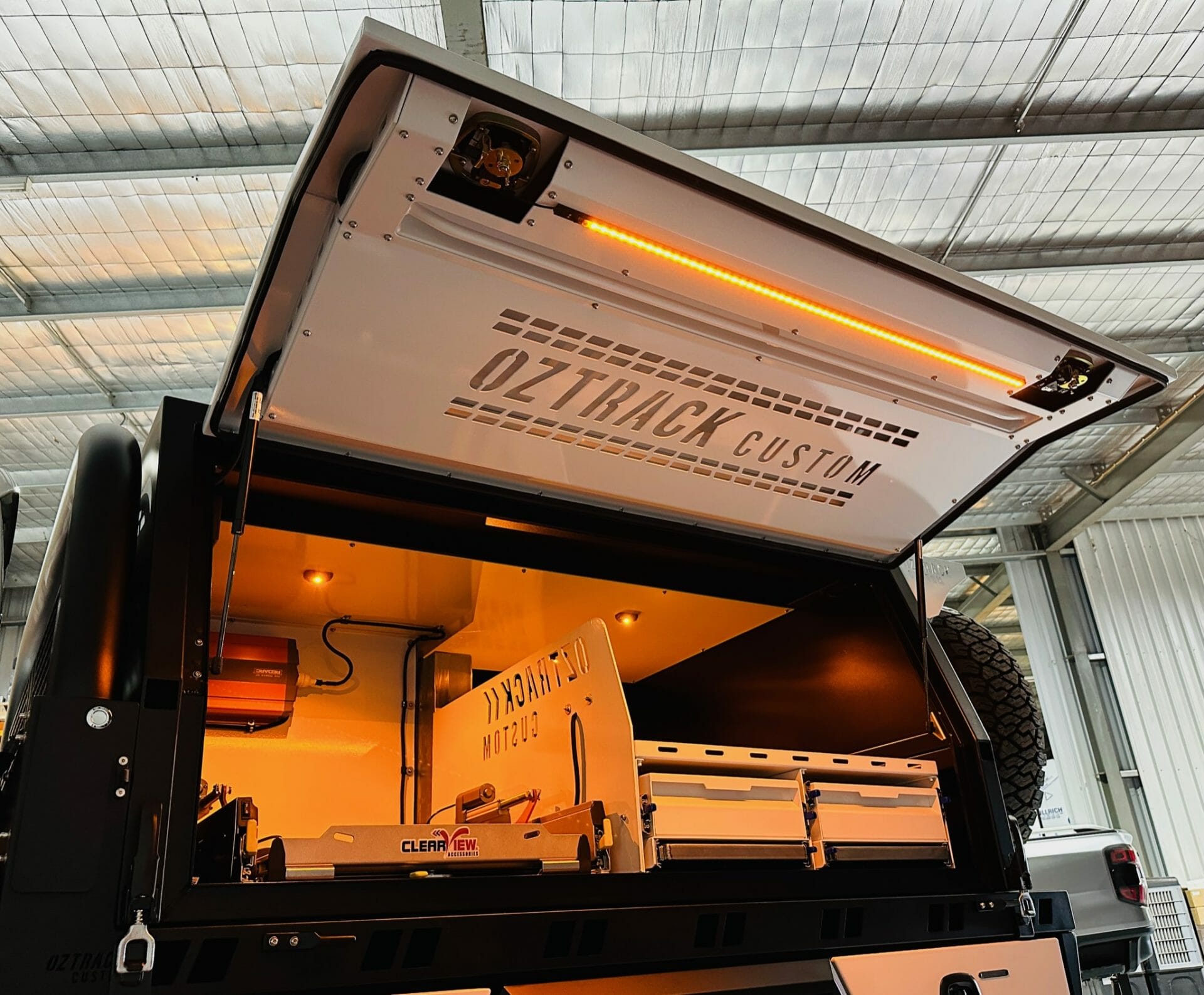

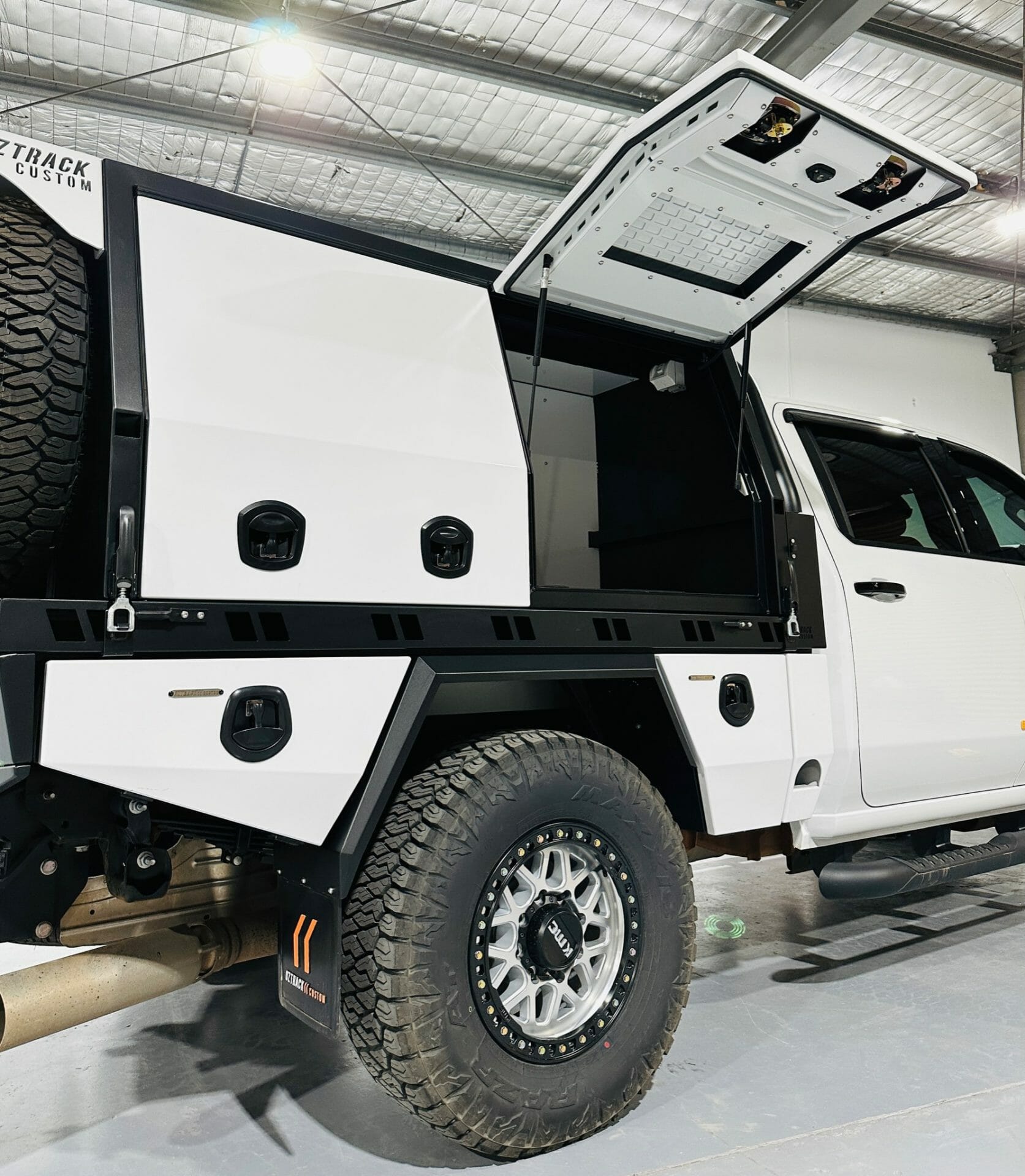

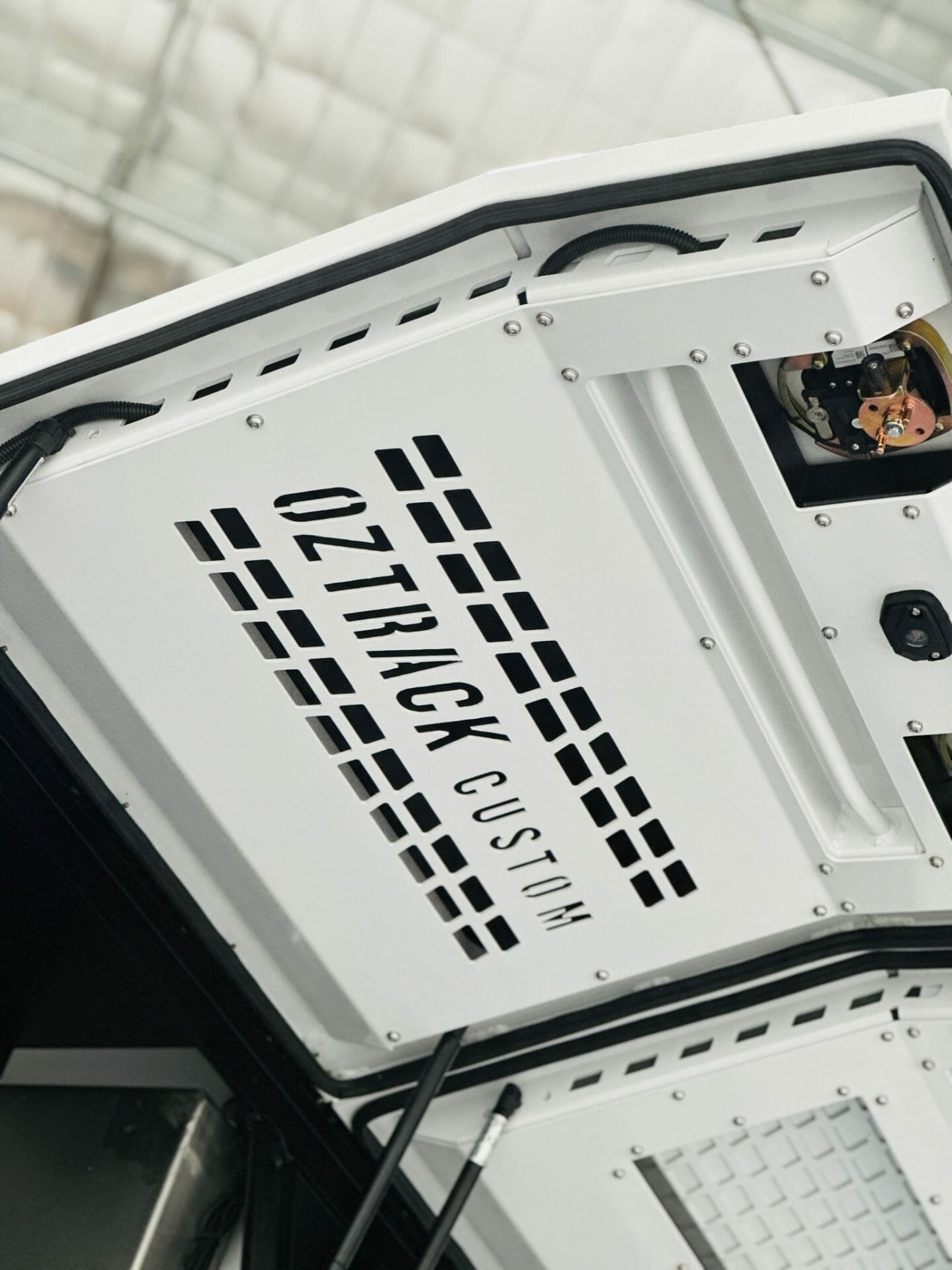

3x Gull-wing doors with internal door skins. All doors have been fitted with central locking handles to ensure piece of mind the contents are safe and eliminates the chances of forgetting to lock a door when leaving the vehicle
3x adjustable door height settings for doors at open position
Automotive grade door seals fitted, along with in field testing have ensured a complete contact seal is achieved to the entire canopy keeping it free from dust
Double Return folds for added seal Protection against Water ingress
Stainless steel mounting hardware
Quick release hold down mounts for ease of removing canopy when tray space required

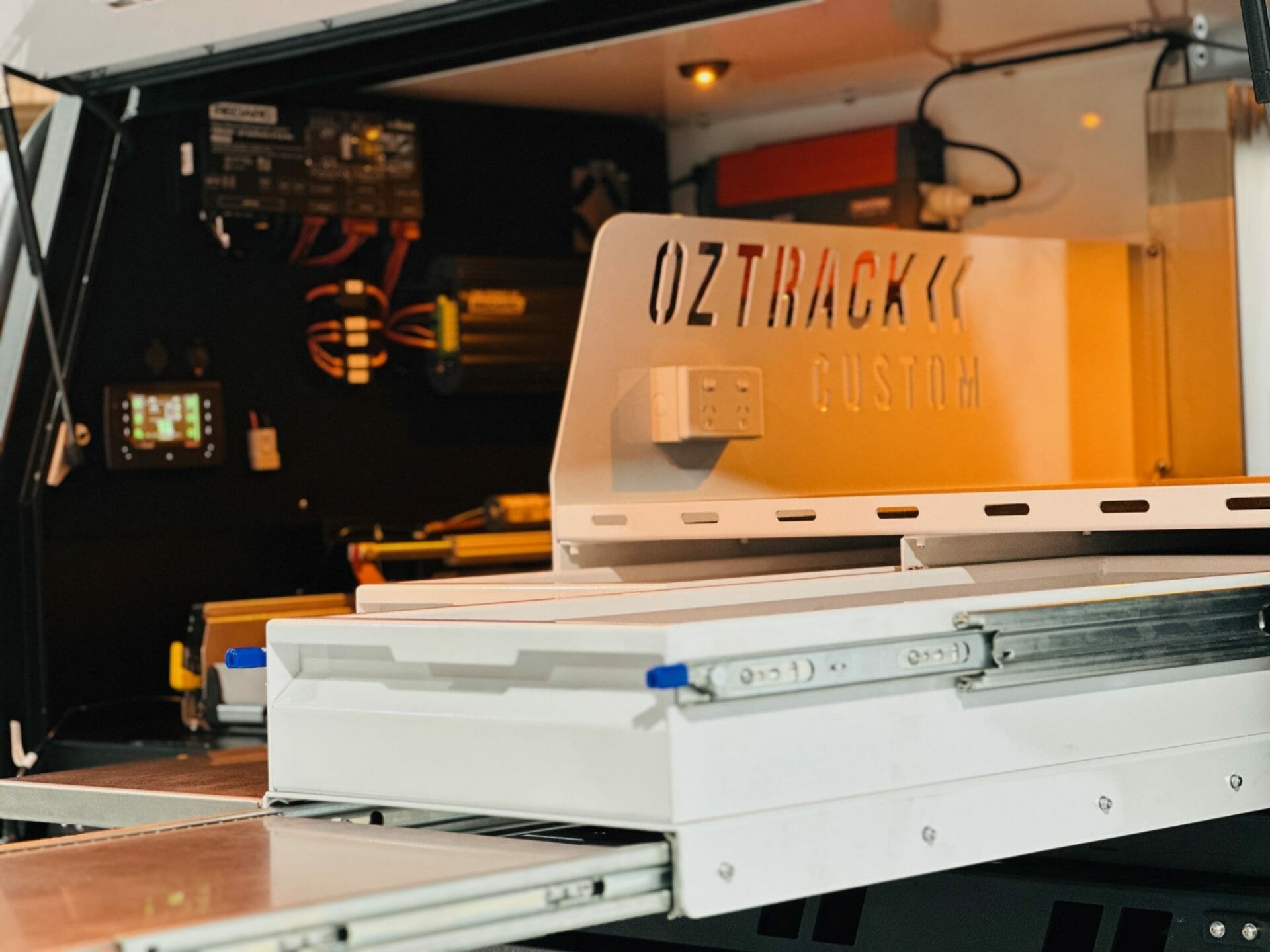

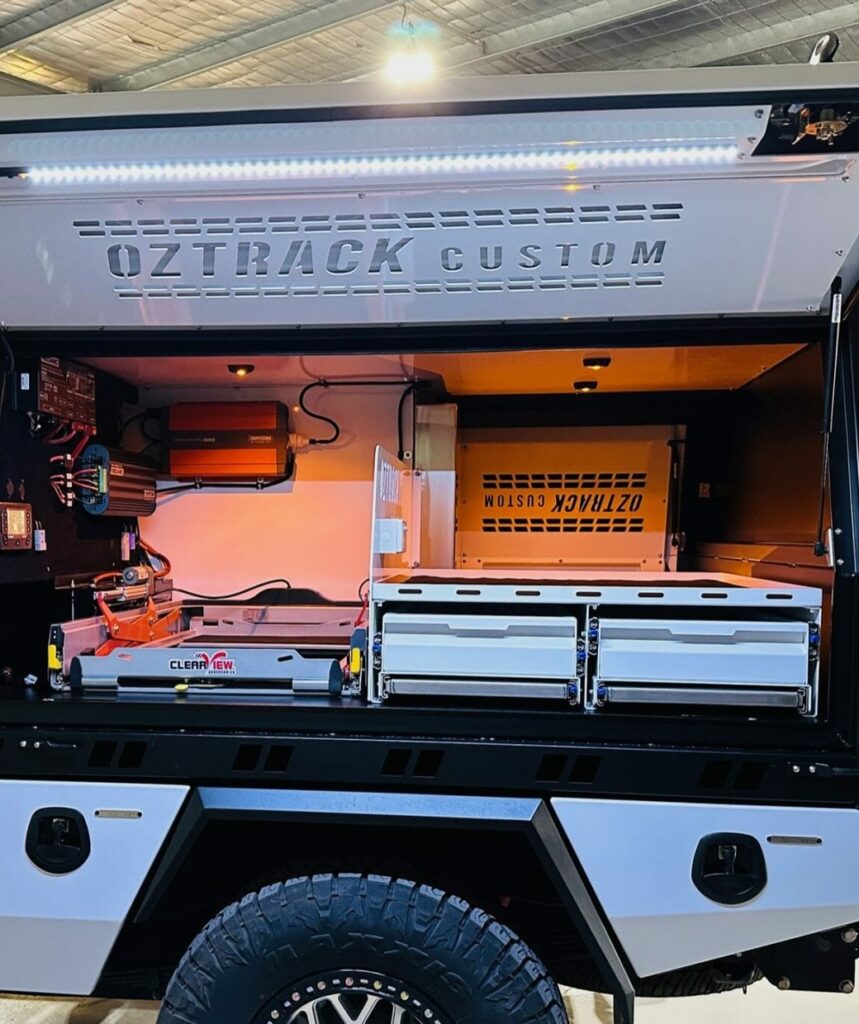

Internal Fitout

(Passengers Front)

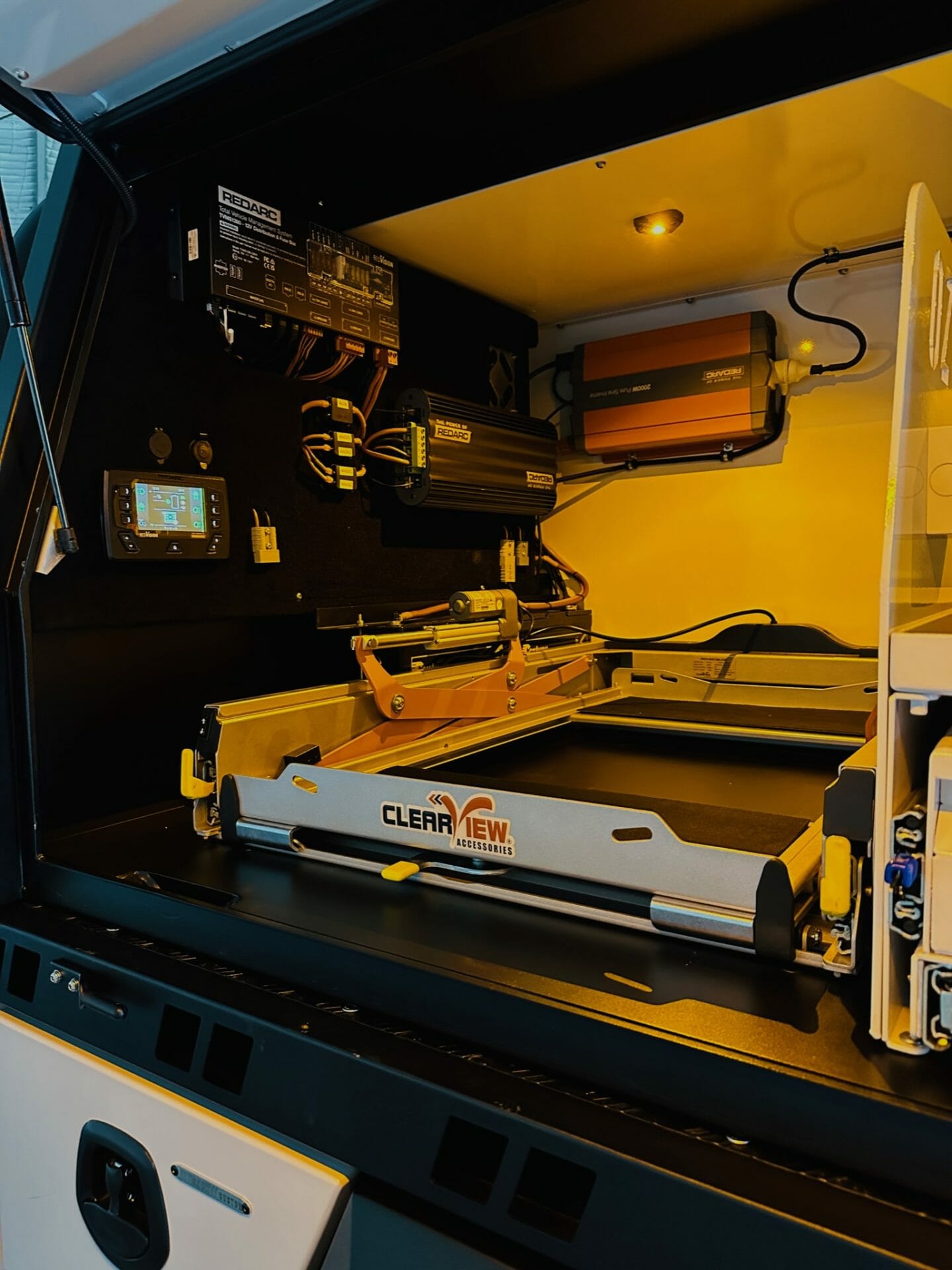

ClearView power Drop/Slide - Suits up to an 80L fridge

(Passengers Rear)
Twin Draw system with integrated Table Modules complete with food grade stainless overlays

(Driver side Rear)
Huge amount of storage space with a stainless steel, wall mounted 75L water tank, 12v pumped with internal sensors wired to RedVision Display showing water levels

(Driver side Front)

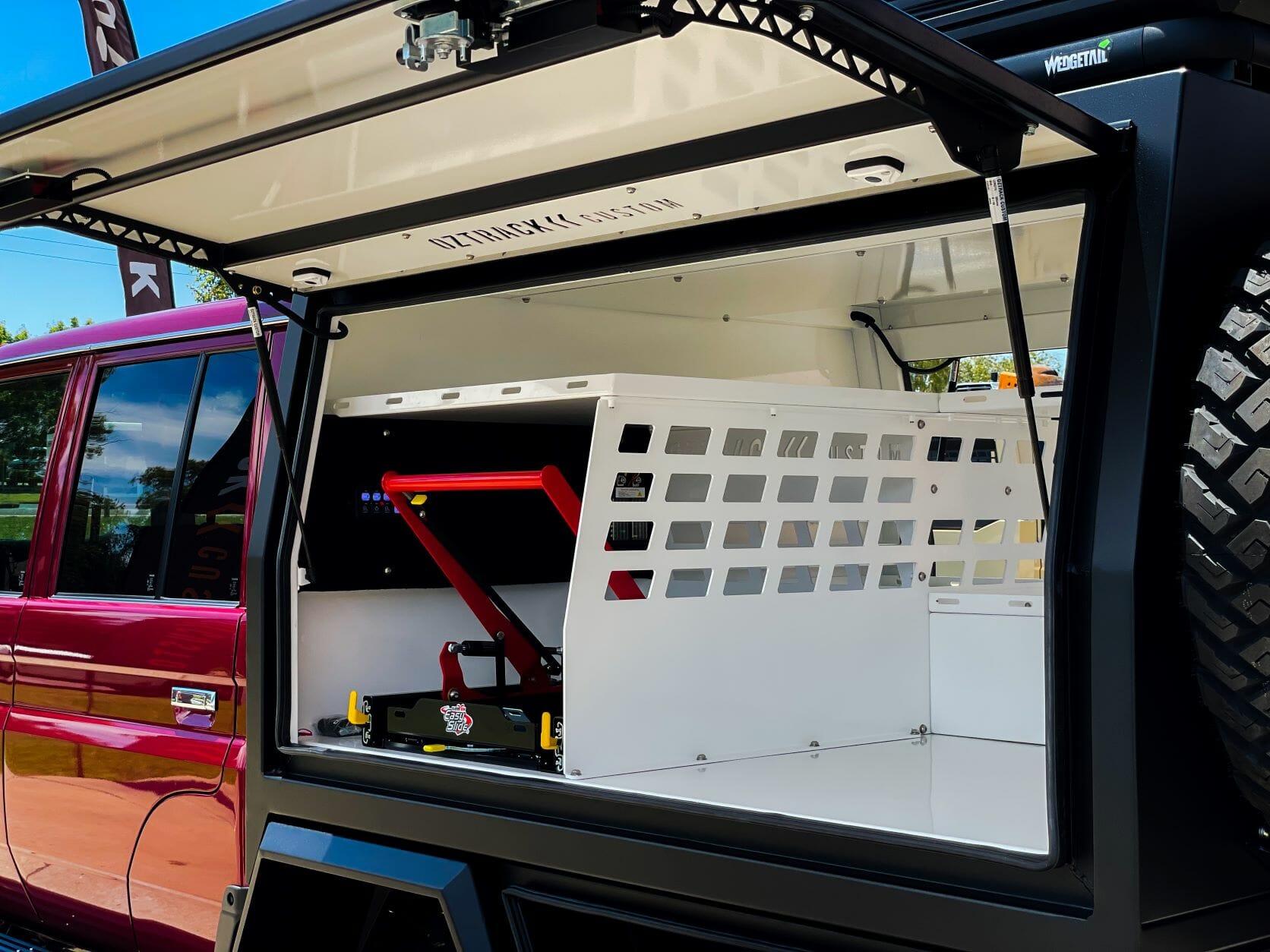

Dirty gear section with vented door - Designed for things such as - pets, fuel, muddy items etc. This section is completely sealed off from the surrounding making it a washable area

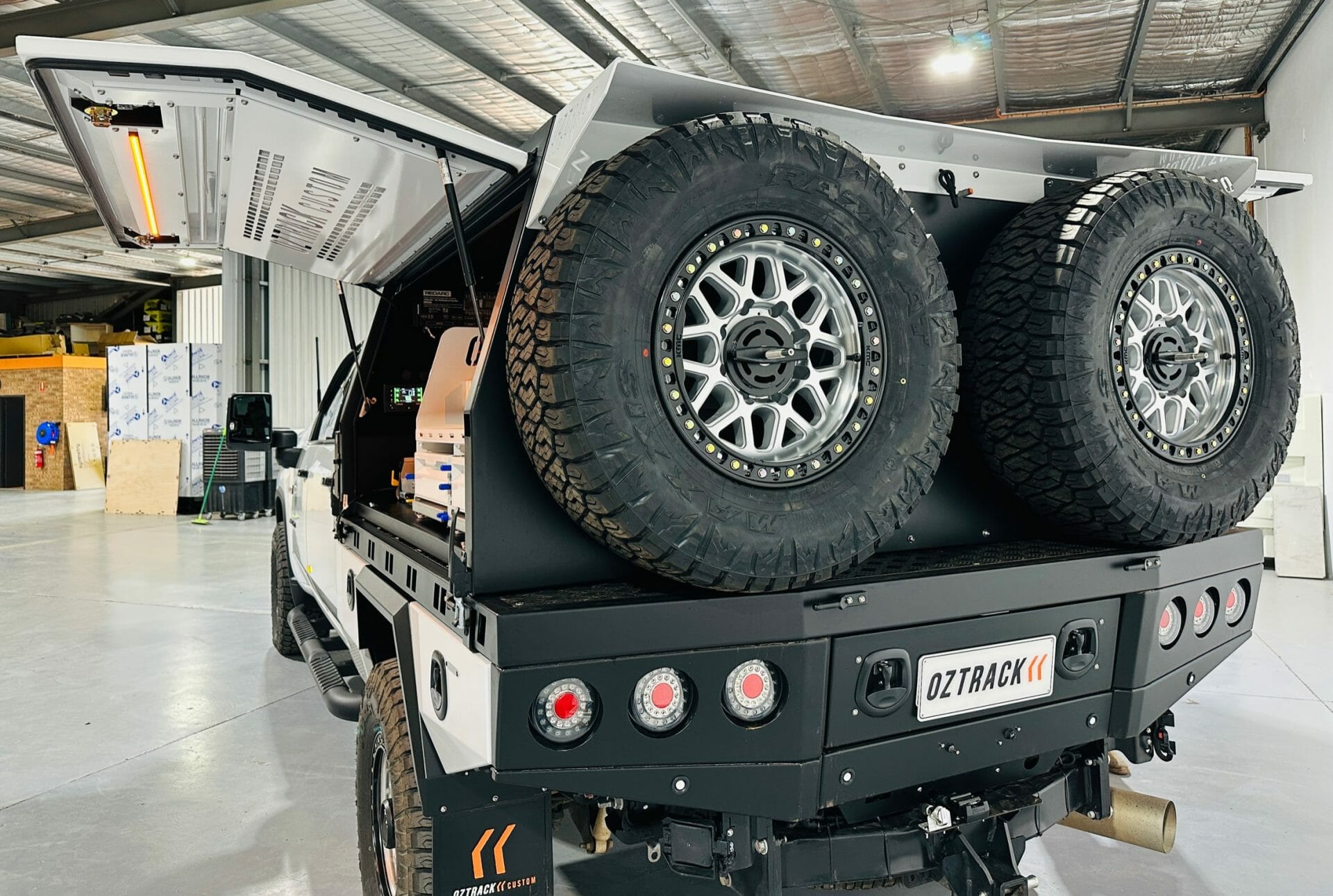

Rear wall (external)

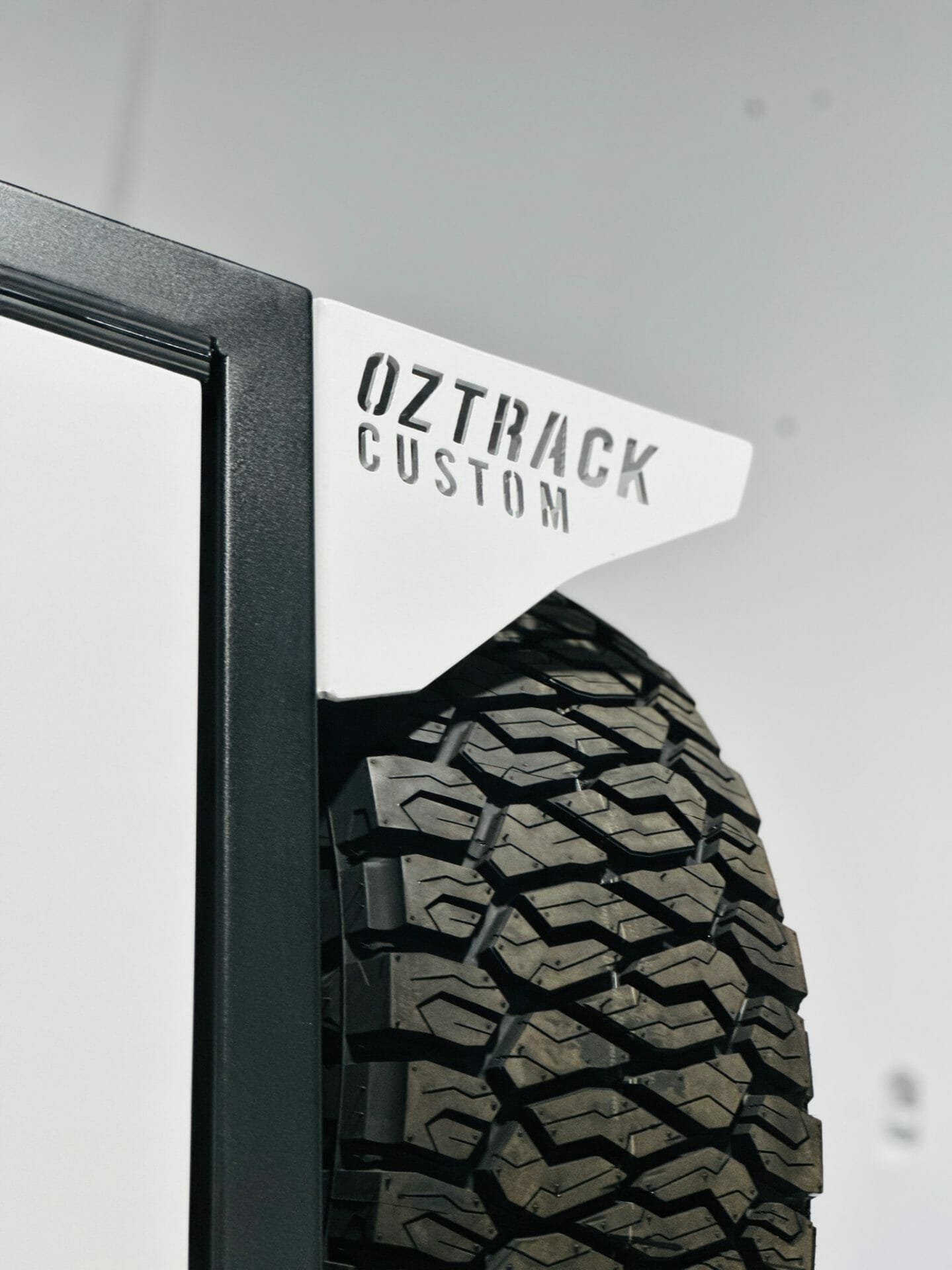

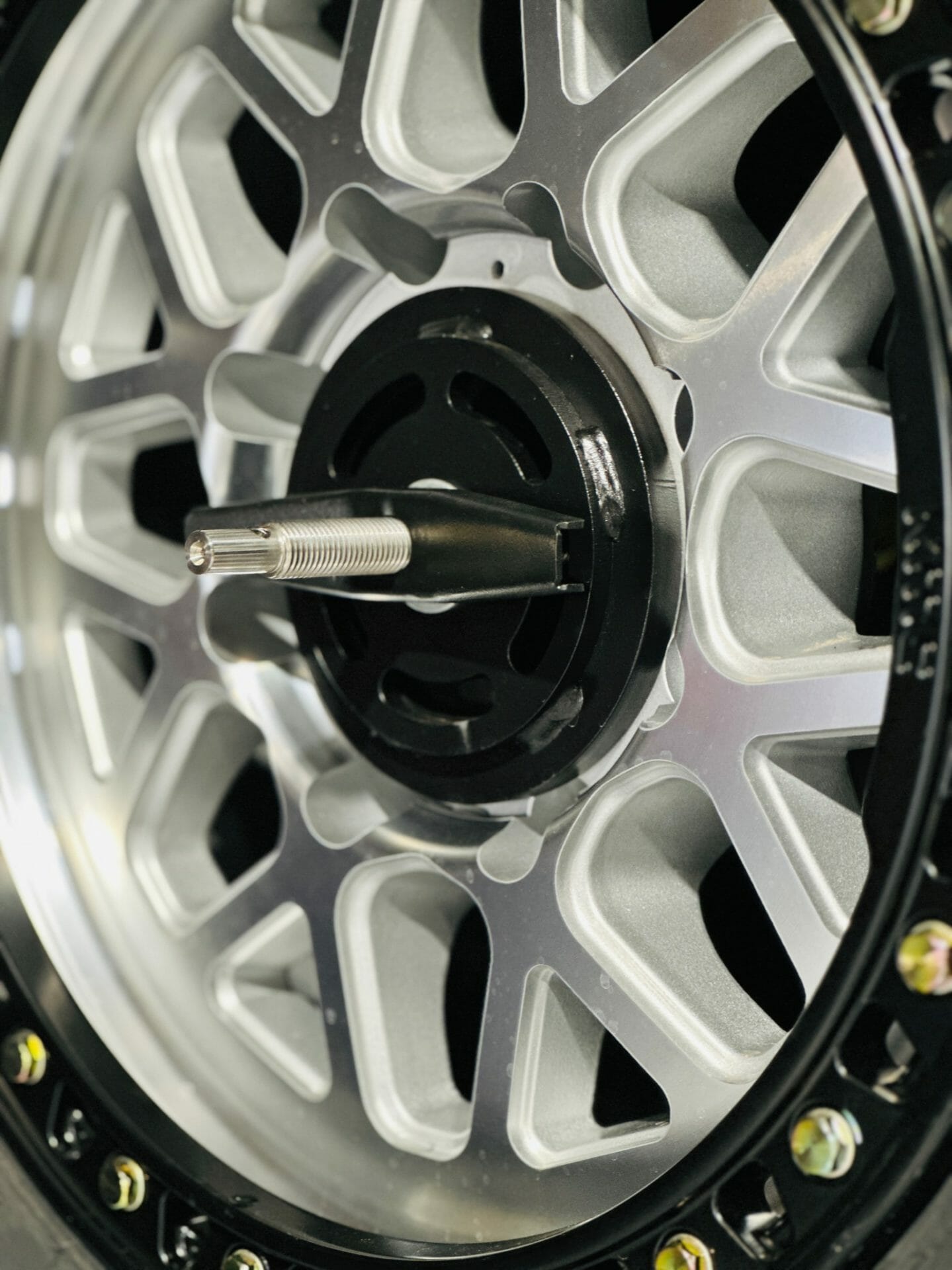

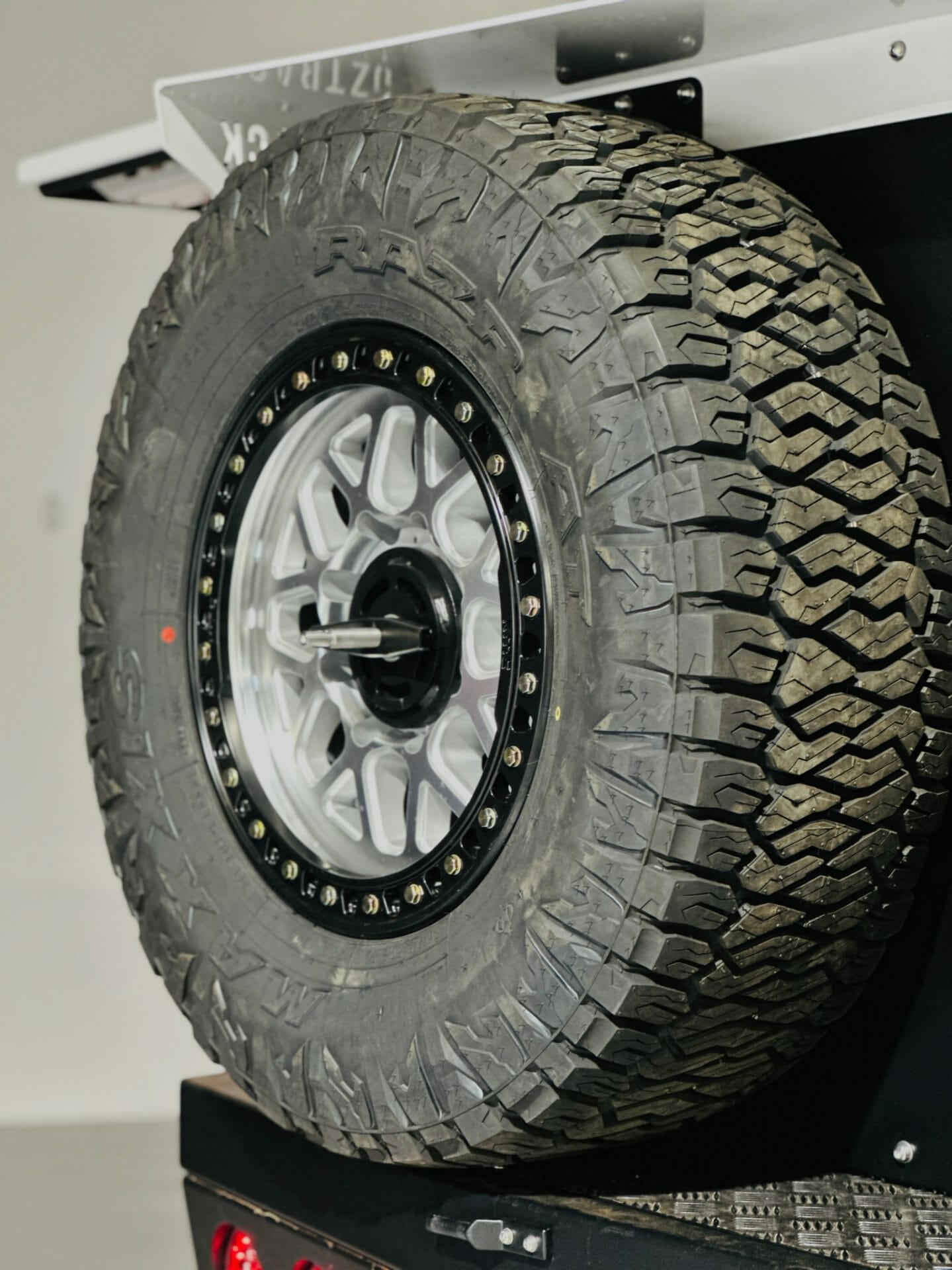

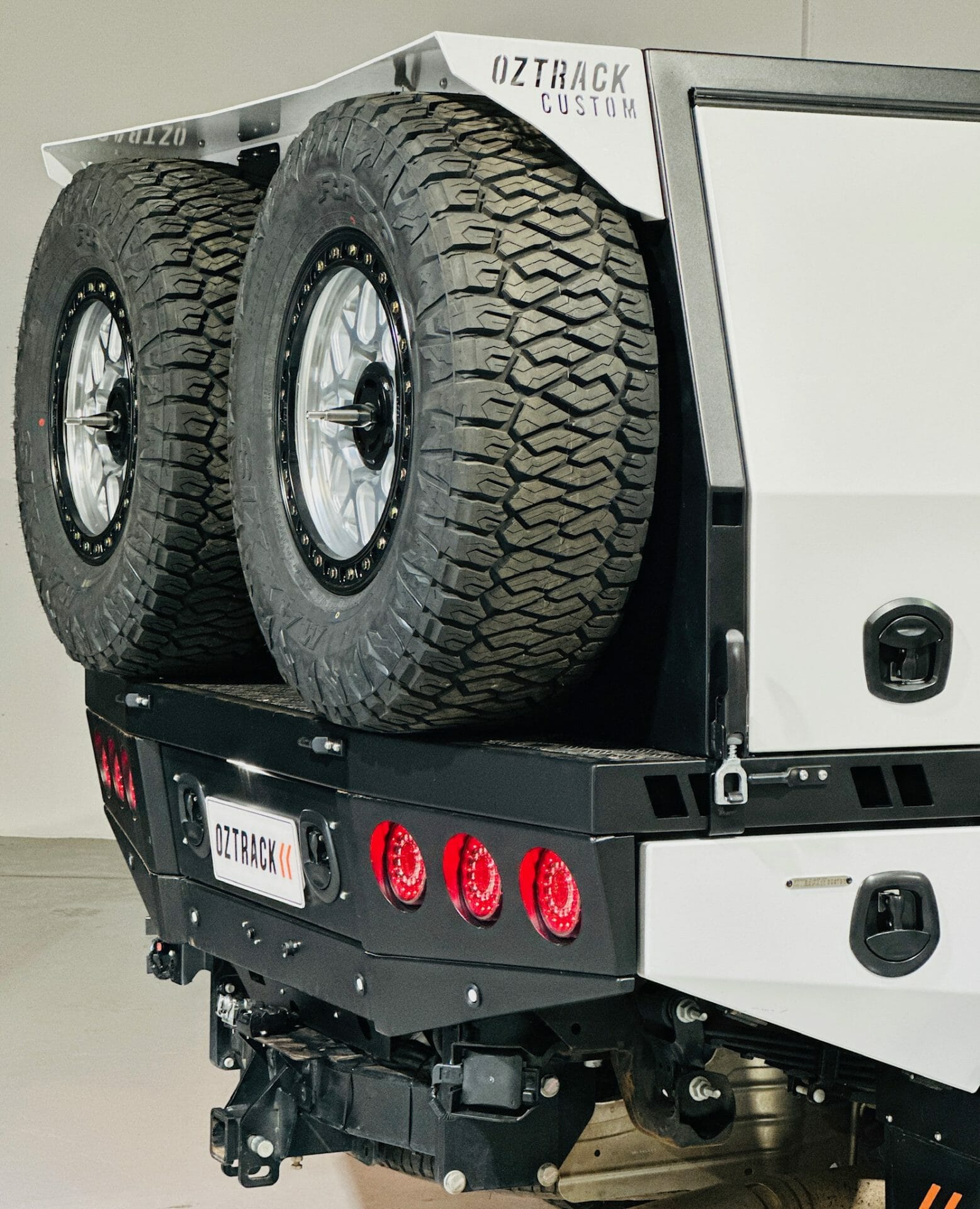

2x Adjustable Spare Wheel Mounts - Low Profile design suiting up to 35” tyres fitted to rear wall with locking centre for security
Roof extension bolted to rear wall adding additional surface area to mount accessories and protection to rear lighting

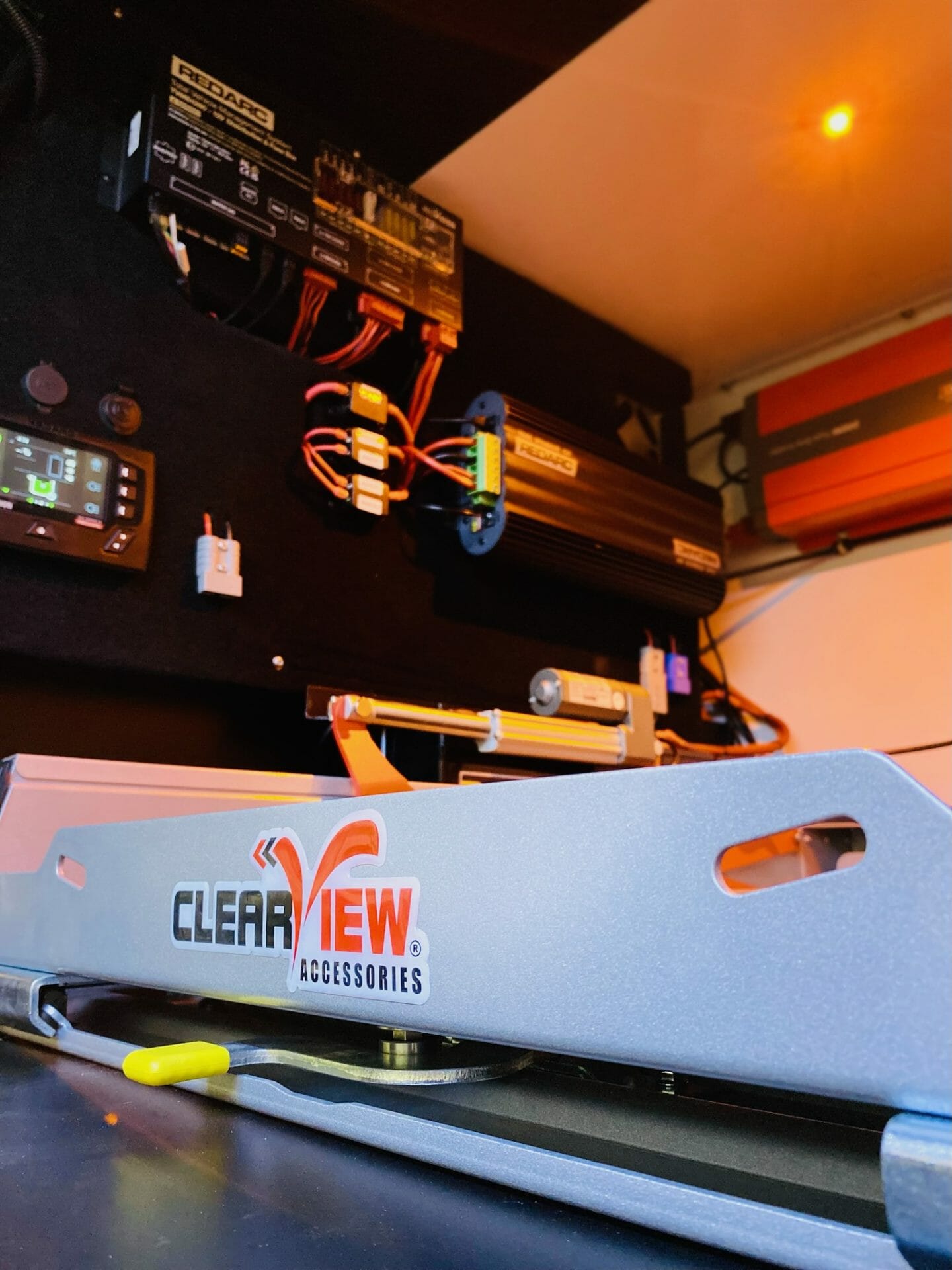

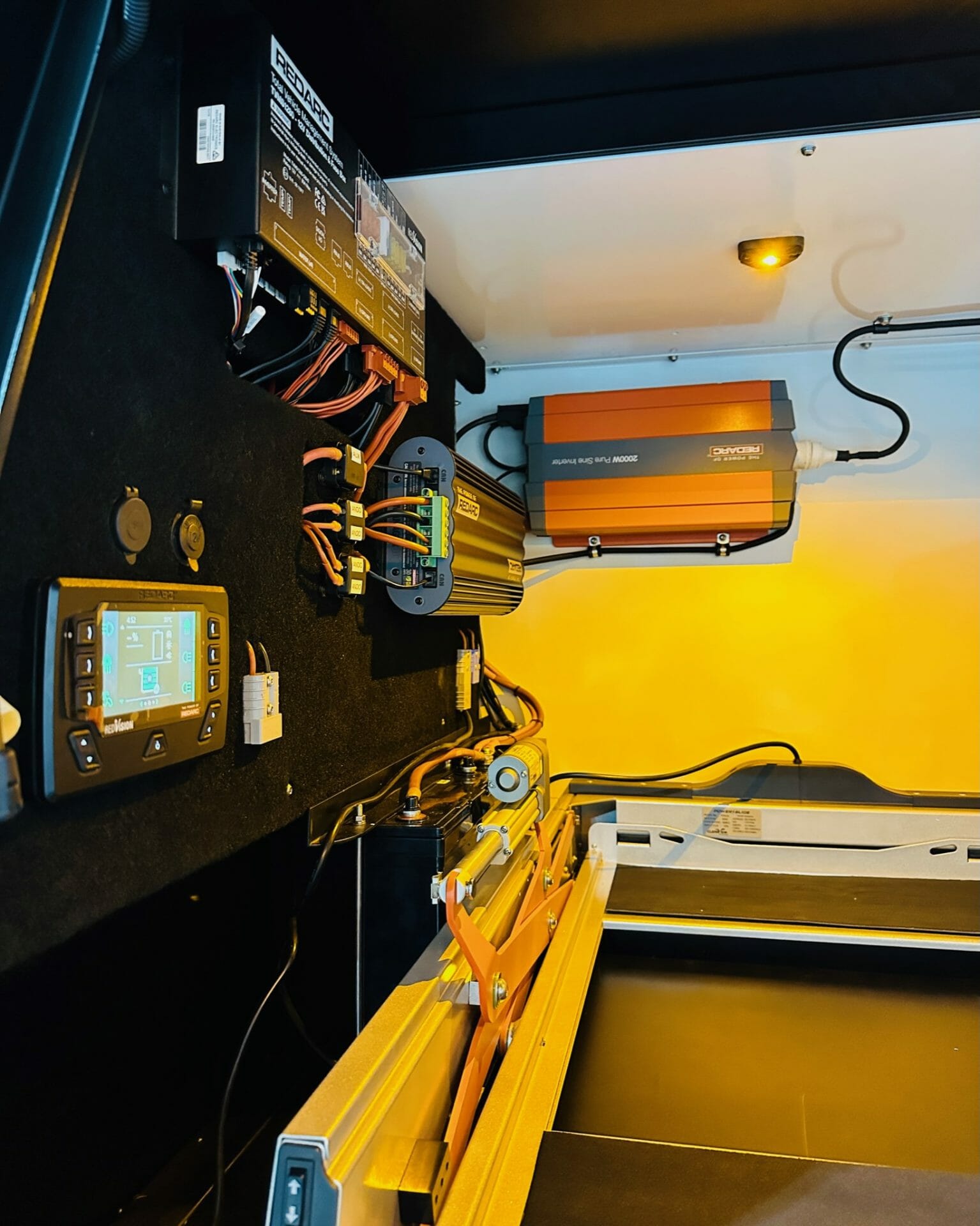

Electrical system:

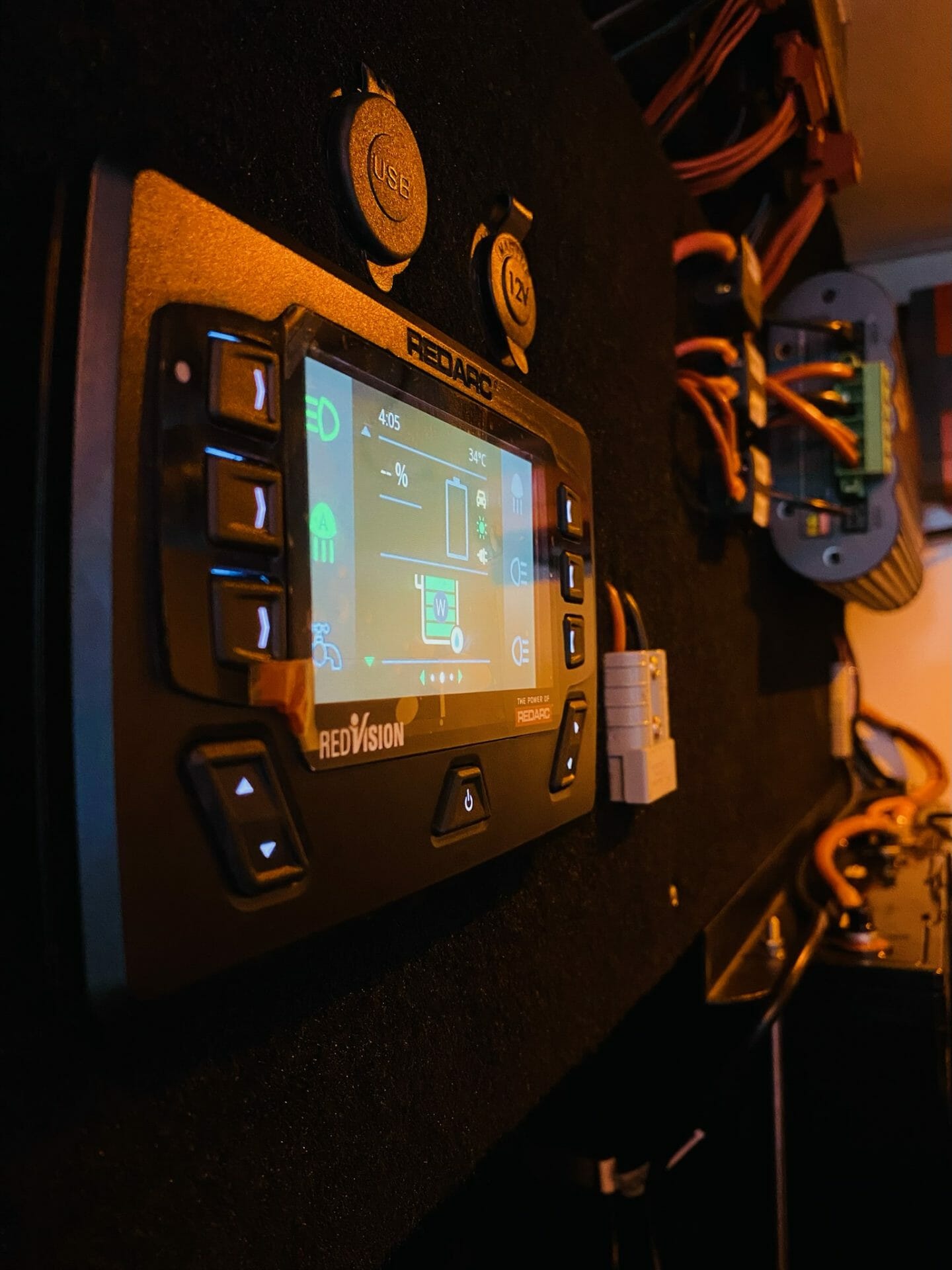

RedArc RedVision Manager 30 main unit
RedVision Total Vehicle Management System
2000W Redarc pure sine wave inverter
1x Enerdrive 200AH-BTEC Lithium battery
240V 15AH external power charging port for 240V input when in caravan parks, at home etc
Dual 240v GPO’s fitted internal and wired to inverter for 240v items when off grid
Charging Wire connecting battery to main under bonnet battery for charge whilst travel
Solar input anderson outlet
1x Dual USB outlet
1x Cig socket
